XP-M4L-SE

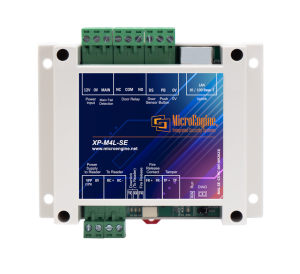

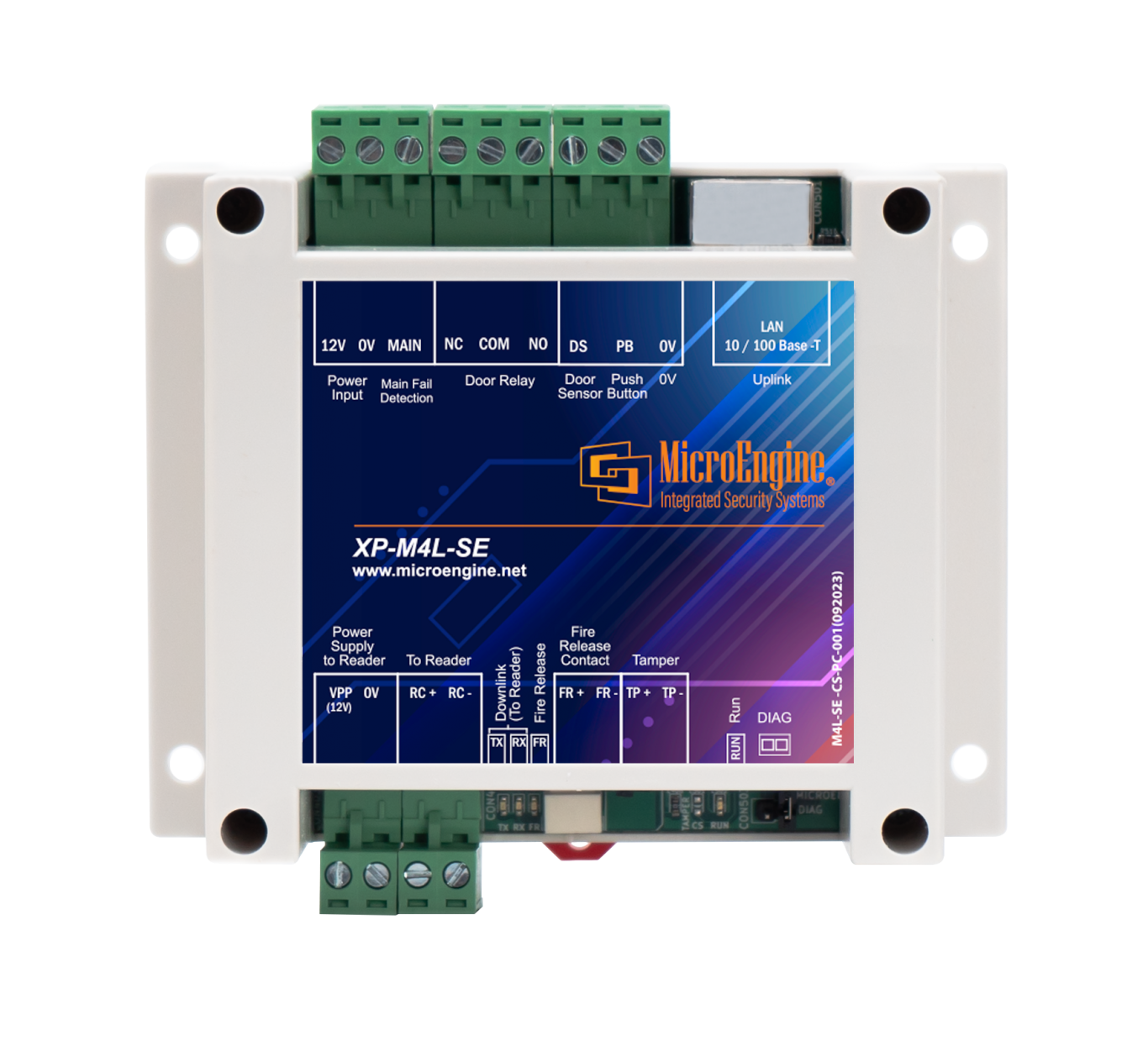

XP-M4L-SE-IP Based Lift Access Controller
XP-M4L-SE Controller IP Based Lift Access Controller is designed for lift button masking system, control up to 128 floor buttons and 4 lift cars. It has to work in conjunction with
MicroEngine 32 Relay Output Extension Board to form a complete Lift Access Control System.
- Wiegand Interface
- Encrypted IP
- Firmware Upgrade
- Device Discovery
- Support 4 lift and Up to 128 Floor Relays
- DIN-Rail Form Factor

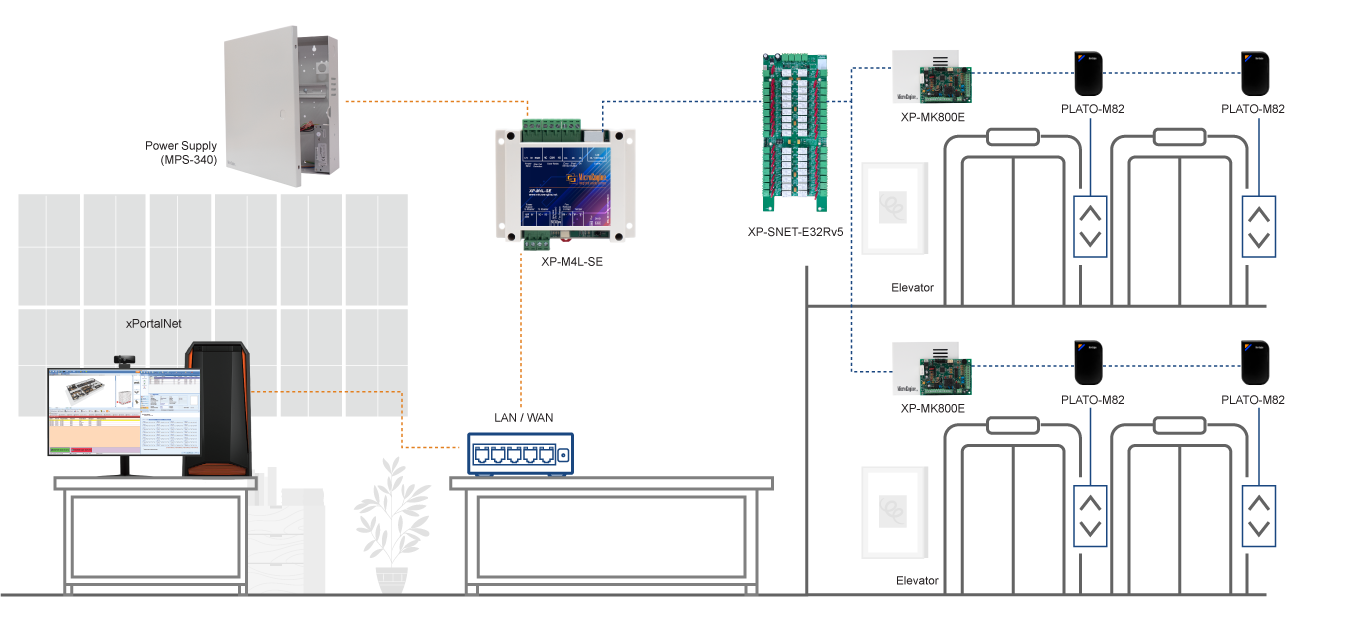

FeaturesConfiguration DiagramDocumentation
| No | Item | Features |
| 1. | No. of Lift | 4 |
| 2. | No. of Floor | Up to 128 Floors |
| 3. | No. of Reader | 4 (PLATO Reader) 8 (PLATO Reader via XP-MK800E) 4 (Weigand Reader via XP-WG10S) |
| 4. | Connect to Reader | Serial RS485 PLATO-Reader Max. 4 units for 4 liftsSerial RS485 via Reader Interface Unit: XP-MK800E – Max. 4 units for 4 liftsWiegand to Plato RS485 Adaptor: XP-WG10S – Max. 4 units for 4 lifts |
| 5. | I/O Interface Module | 32 Relay Output Board: XP-SNET-E32R Max. 4 units for 128 Relay Outputs |
| 6. | Inputs | 2 1 Dedicated Fire Alarm 1 Dedicated Tamper Input |
| 7. | Card Holder Size | 10,000 (16 Digits) |
| 8. | Max. Transactions Log | 50,000 |
| 9. | Connect to Software | TCP/IP |
| 10. | Time Setting | 255 Time Set & 255 Time Zone |
| 11. | Holiday Setting | 30 x 1 Set |
| 12. | Floor Zone | 255 |
| 13. | Floor Accessibility | 255 |
| 14. | Real Time Clock | With On-Board Battery |
| 15. | Power Fail Monitor | Yes |
| 16. | Processor | PIC32-bit RISC MCU at 80 MHz |
| 17. | Data Flash Memory | EEPROM:128 KB, Flash 4 MB |
| 18. | Flash | 512 KB |
| 19. | DIN-Rail Casing Dimension | 115 mm (H) x 106 mm (W) x 40 mm (D) |
| 20. | Casing Dimension (MP-340) | 267 mm(H) x 310mm (W) x 72 mm (D) |
| 21. | Power Supply | Input: 240VAC, 1A. Output:13.8VDC, 2.8A (max) |
| 22. | Power Consumption | Typically 12 VDC, 150mA (Controller board only) |
| No | Documentation |
| 1. |  Product Datasheet: XP-M4L-SE |
