MIFARE Reader
Plato Multi Card Readers – PLATO-M82 / K82 / S82

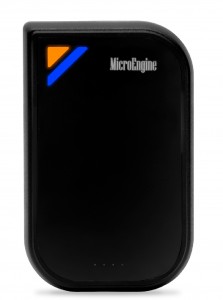

PLATO-M82

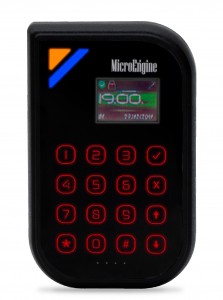

PLATO-K82

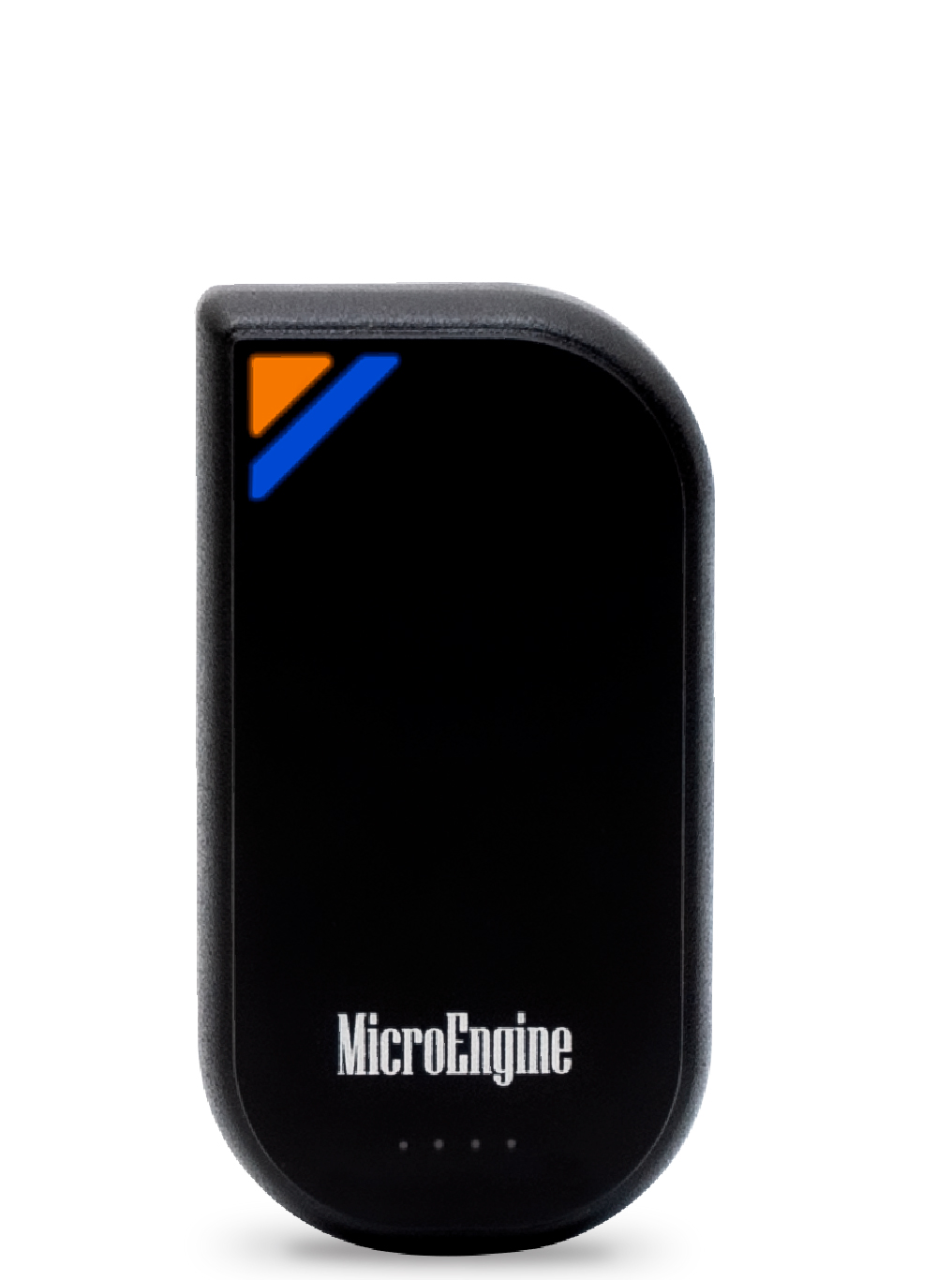

PLATO-S82
- Slim and stylish design
- Weather proof
- Using RS485 – longer distance (Up to 1KM away from controller)
- MIFARE DESFire, MIFARE Classic CSN, MIFARE Sector Reading, and CEPAS
- Better security with card numbers of up to 16 digits
- Not identification by Card Serial Number for MIFARE Sector Reading
- Touch Sense keypad
- Color LCD
- 2 stylish LED indicators
- Built-in buzzer
MIFARE ReaderConfiguration DiagramDocumentation
| No | Features | PLATO-M82 | PLATO-K82 | PLATO-S82 |
| 1. | Connectivity | RS485 | ||
| 2. | LED indicator | Amber and Blue | ||
| 3. | Reader type | MIFARE Classic CSN / MIFARE Sector / DESFire and CEPAS | ||
| 4. | Card Digits | Max. 20 | Max. 20 | Max. 16 |
| 5. | Buzzer | Yes | ||
| 6. | Card Serial Number Reading (CSN) | Yes | ||
| 7. | Configurable Sector Reading | Yes | ||
| 8. | Dimension ( H x W x D) mm | 90 x 57 x 16 | 90 x 57 x 16 | 80 x 43 x 16 |
| 9. | Silicon Sealing | Yes | ||
| 10. | Weather Proof | Yes | ||
| 11. | Reading Range | Max. 5cm (Depends on card used) |
Max. 4cm (Depends on card used) |
Max. 4cm |
| 12. | Tamper Sensor | Yes | ||
| 13. | Material | Body – Polycarbonate Faceplate – Acrylic |
Body – Polycarbonate Faceplate – Acrylic |
Polycarbonate |
| 14. | Keypad | No | Yes | No |
| 15. | LCD | No | Yes | No |
| 16. | Input Voltage | 12VDC | ||
| 17. | Current (Typical) | 80mA at 12VDC | 125mA at 12VDC | 75mA at 12VDC |
| 18. | Operating Temperature | 0 – 50° Celcius | ||
| No | Documentation |
| 1. |  PLATO-M82-Datasheet |
| 2. | PLATO-K82-Datasheet |
| 3. | PLATO-S82-Datasheet |
