XP-M1000X
XP-M1000X

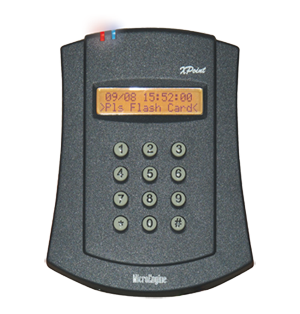

XP-M1000X is a Standalone Proximity Card Reader and Controller with Keypad and LCD Display. It can connect to an Exit Reader XP-RDPRX. The system supports up to 1,000 card users with 10,000 transaction records in its memory for Time Control (Time Attendant Mode)
FeaturesPC RequirementsFAQ
| No | Features | Functions |
| 1. | Card User Memory | 1,000 (2,000 in Car Park Access Mode) |
| 2. | Transaction Records | 10,000 (5,000 in Car Park Access Mode) |
| 3. | Single Unit Reader, Keypad & Controller | Yes |
| 4. | Build-In Card Reader | Yes – EM Card (Mifare Card Model Available) |
| 5. | Access Operation Mode | Card Only, PIN Only, Card + PIN |
| 6. | Fingerprint Template Capacity 1:N |
No |
| 7. | Display | 2×16 Character LCD with BackLight |
| 8. | Keypad | Epoxy Coated High Durability Keypad |
| 9. | Time Set & Time Zone | 50 |
| 10. | Holiday Dates | 30 |
| 11. | Auto PIN | 10 Sets |
| 12. | Built-in Real Time Clock with Battery | Yes |
| 13. | Car Park Mode External Entry Reader | Yes |
| 14. | Exit Reader | Yes |
| 15. | Exit Push Button | Yes – with Time Zone Control |
| 16. | Support Wiegand 26-bit Reader | Yes |
| 17. | Anti-Passback | Yes |
| 18. | Controller Operation Mode | Access Control, Time Attendance, Car Park |
| 19. | Supports Programming Through Keypad & LCD at the Reader |
Yes |
| 20. | Lock Control, Door Sensor & Exit Button Input | Yes – Through MAS-RBS Located Inside the Door |
| 21. | Configurable Lock Release Time | Yes – 0-99 secs. |
| 22. | Configurable Door Open Time | Yes – 0-99 secs. |
| 23. | Auto Lock Release Time Zone | Yes |
| 24. | Sensor & Output | Yes – with External MiO-44, 4 In 4 Out Card |
| 25. | Data Flash Memory | No |
| 26. | Onboard Buzzer | Yes |
| 27. | Communication Ports | RS232 / RS485 |
| 28. | Can be Linked to PC for Software Control | Yes |
| 29. | Power | 12VDC |
| 30. | Dimension | 152mm (H) x 122mm (W) x 32mm (D) |
| No | System | Requirements |
| 1. | CPU (Recommended) | Intel Core i3-3220, 3.3 GHz or Higher |
| 2. | RAM (Minimum) | 2 GB (3 GB Recommended) |
| 3. | OS | Microsoft Win7/Win8 Pro, 2003/2008 Server (Home & Starter Editions Not Supported) |
| 4. | Microsoft.Net Framework | Yes (Version 3.5) |
| 5. | Serial Port | Yes |
| 6. | USB Port | Optional – Required for USB Desktop Reader |
| 7. | Display (1024 x 768 x 16 Bit Colours) | Yes |
| 8. | Mouse / Keyboard | Yes |
| 9. | Hard Disk (Free Space) | 50 GB |
